Substation Post Insulator Solutions
Advanced composite post insulator solutions engineered for the demanding requirements of EHV/UHV substation applications — delivering superior reliability, mechanical strength, and environmental resistance.

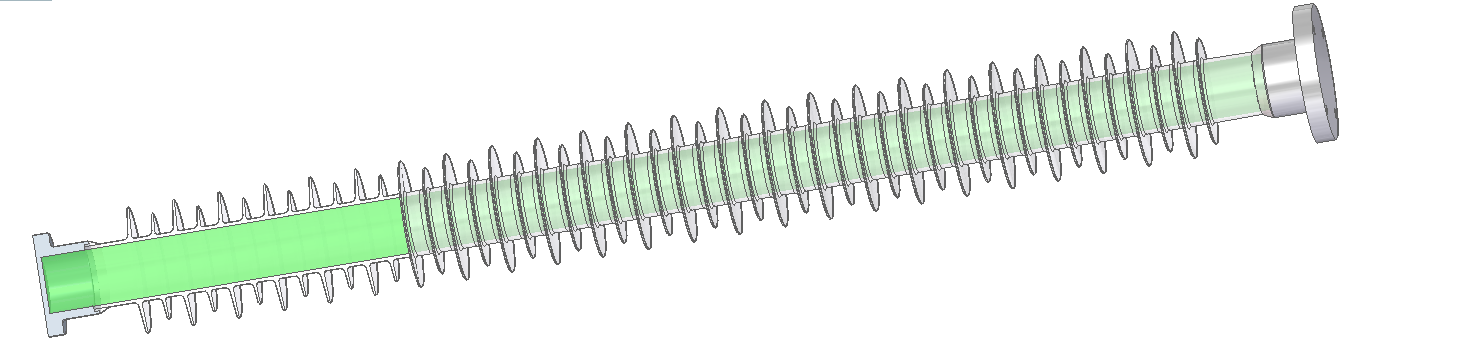

Overview
Shemar USA specializes in high-performance post insulator solutions for substation applications. Our advanced composite post insulators are designed to meet the demanding requirements of modern power systems, providing superior insulation performance, mechanical strength, and environmental resistance.
Product Features
- Superior dielectric strength and insulation performance
- Advanced composite materials for lightweight design
- Excellent resistance to environmental factors (UV, pollution, moisture)
- High mechanical strength and load capacity
- Reduced maintenance requirements
- Long service life in demanding conditions
Technical Specifications
- Voltage class: Up to 765kV
- Mechanical load: Up to 50kN
- Creepage distance: Customizable
- Temperature range: -50°C (-58°F) to +125°C
- Design life: 40+ years
- Standards: ANSI/IEEE C29.13, IEC 61462, IEC 61109
Key Advantages
Shemar USA's substation post insulators offer significant advantages over traditional porcelain insulators, ensuring reliable performance in critical applications.
Non-explosion
The main body adopts continuous high-strength glass fiber with high mechanical strength and good toughness. No explosion will occur even under extreme operating conditions.
The main body high-strength glass fiber runs through, high strength, good toughness, no explosion under extreme conditions.
Non-brittle fracture
With a fiber content up to 80%, the product adopts a grid-like cross-linked structure for integral load bearing. Under extreme conditions, only cracks will be generated without overall fracture.
Fiber content reaches 80%, grid-like cross-linked structure, integral load bearing. Under extreme conditions, only cracks will be generated without breaking.
Non-flashover
The silicone rubber sheds are made of hydrophobic materials with excellent hydrophobicity and hydrophobic migration performance. It presents superior resistance to pollution flashover, rain flashover and ice flashover.
Silicone rubber umbrella skirt is a hydrophobic material with excellent hydrophobicity and hydrophobic migration properties, with excellent resistance to pollution flashover, rain flashover, and ice flashover.
Long Service Life
Our composite post insulators are designed for a service life of 40+ years, providing long-term reliability and reducing lifecycle costs for utilities.
Designed for 40+ years service life, reducing lifecycle costs and maintenance requirements.
Comparison: Composite vs Traditional Insulators
See how Shemar's composite post insulators compare to traditional porcelain and glass insulators.
| Feature | Composite Insulators | Porcelain Insulators |
|---|---|---|
| Weight | Lightweight (1/10 of porcelain) | Heavy |
| Mechanical Strength | High (80% fiber content) | Brittle, prone to fracture |
| Explosion Risk | No explosion risk | Explosion risk under fault |
| Hydrophobicity | Excellent (silicone rubber) | Poor |
| Pollution Resistance | Superior | Requires frequent cleaning |
| Maintenance | Minimal | High |
| Service Life | 40+ years | 20-30 years |
| Installation Cost | Lower (lightweight) | Higher (requires heavy equipment) |
Typical UHV Substation Projects
Explore our successful UHV substation projects that demonstrate the reliability and performance of our post insulator solutions in critical applications.

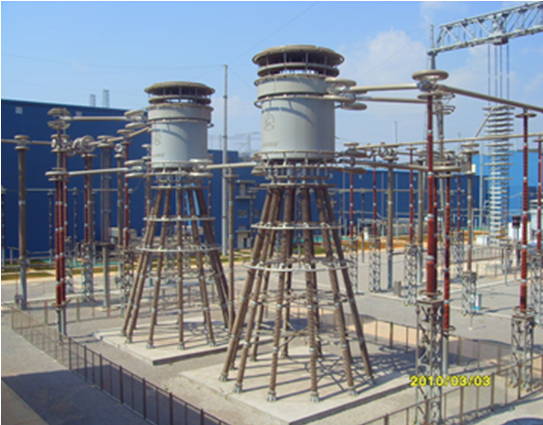

Chuxiong ±800kV HVDC Converter Station
This project is the world's first ±800kV UHVDC transmission project, marking a historic breakthrough from 0 to 1 in China's UHVDC transmission technology. In 2007, 270 products were delivered, and the products have been running for 18 years. So far, there is no abnormal quality, and the products are still running reliably.
Project Highlights:
- World's first ±800kV UHVDC transmission project
- 18 years of reliable operation
- 270 products delivered

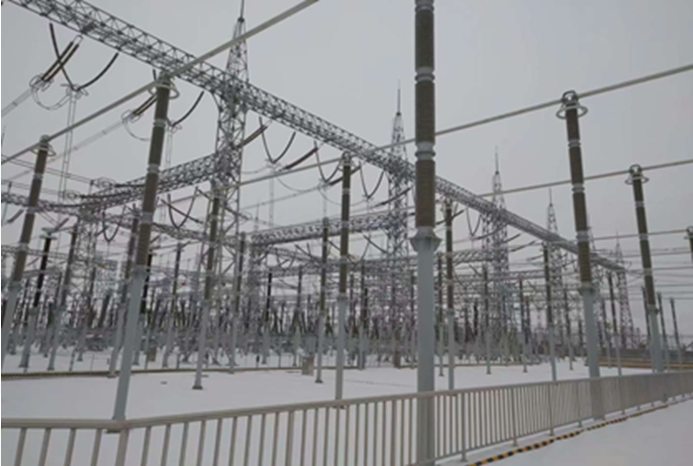

Changji ±1100kV UHVDC Converter Station
As the world's first ±1100 kV UHVDC transmission project, it ranks first in the world in four aspects: the highest voltage level, the largest transmission capacity, the longest transmission distance and the most advanced technical level. In 2016, 1,267 products were delivered, and the products have been hanging for 9 years, there has been no quality abnormality so far, and the products still operate reliably.
Project Highlights:
- World's highest voltage level (±1100kV)
- 9 years of reliable operation
- 1,267 products delivered

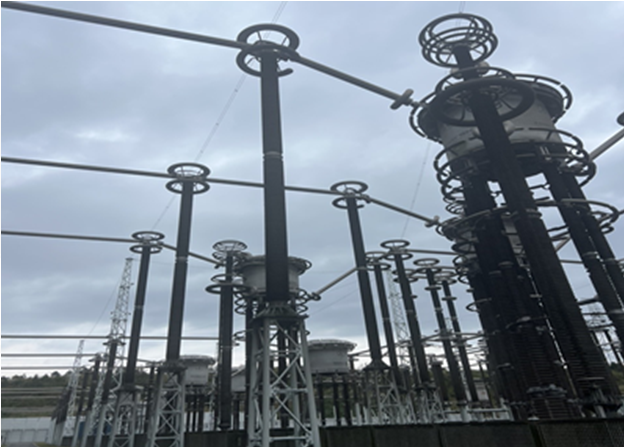

Liubei ±800kV HVDC Converter Station
In 2019, 790 products were delivered, and the products have been hanging for 6 years. The completion and commissioning of Liubei Converter Station marks that China has seized the commanding height of UHV multi-terminal flexible direct current transmission technology. There has been no quality abnormality so far, and the products still operate reliably.
Project Highlights:
- UHV multi-terminal flexible direct current technology
- 6 years of reliable operation
- 790 products delivered
Download Resources
Access our comprehensive technical documentation including product specifications, test reports, and engineering drawings.
Product Brochure
Complete product catalog with specifications and dimensions
Technical Specifications
Detailed technical data and parameters
Test Reports
Type test and certification reports
Engineering Drawings
2D and 3D CAD drawings for installation reference
Aging Reports
Long-term aging performance data and field validation records
Installation Guide
Video tutorials and step-by-step installation manuals
Ready to Enhance Your Substation Performance?
Our engineering team is ready to help you select the optimal post insulator solution for your substation project. Contact us today for a comprehensive assessment.
Get Substation Solution
