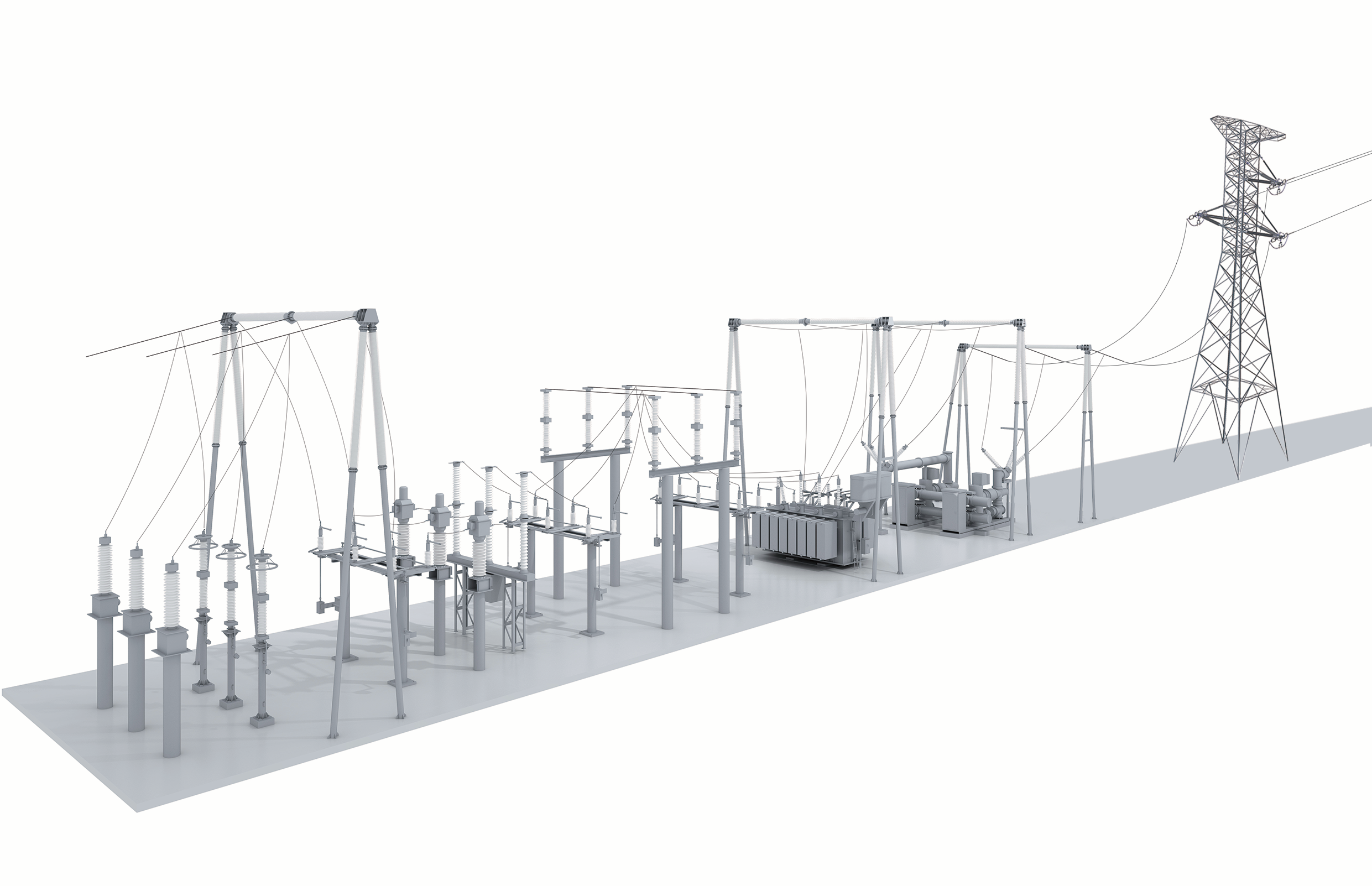

Substation Composite Gantry Structure
Lightweight, high-strength composite gantry structures for EHV/UHV substations — replacing heavy steel with corrosion-free, electrically insulating composite structures that reduce installation time and substation footprint.
Overview
Shemar USA offers advanced compact composite substation gantry solutions that provide superior performance, durability, and reliability compared to traditional materials. Our innovative composite structures enable more efficient and sustainable substation designs.
Key Advantages
- Lightweight yet high-strength composite materials
- Corrosion resistance for long-term durability
- Reduced maintenance requirements
- Enhanced electrical insulation properties
- Design flexibility for custom applications
- Environmental sustainability
Applications
- Substation structures and frameworks
- Insulator support systems
- Busbar supports
- Equipment mounting structures
- Protective enclosures
- Custom substation components
Key Advantages
Our compact composite substation gantry solutions offer significant advantages in terms of space optimization, safety, and reliability.
Space Optimization
The compact design reduces substation footprint, allowing for more efficient use of land and easier integration into urban environments.
Lateral reduction in land occupation with lower gantry height requirements.
Enhanced Safety
Eliminating insulator strings reduces the risk of conductor wind deflection and jump line faults, improving overall substation safety.
Reduced risk of conductor wind deflection and elimination of jump line faults.
Reduced Maintenance
Composite materials require minimal maintenance compared to traditional materials, reducing operational costs over the lifecycle.
Corrosion-resistant composite materials with minimal maintenance requirements.
Superior Performance
Advanced composite materials provide excellent electrical insulation and mechanical strength for reliable performance in demanding conditions.
Excellent electrical insulation properties and high mechanical strength-to-weight ratio.
Comparison: Composite vs Traditional Gantry
See how Shemar's composite substation gantry compare to traditional steel structures.
| Feature | Composite Gantry | Steel Gantry | Concrete Gantry |
|---|---|---|---|
| Weight | Lightweight (1/4 of steel) | Heavy | Very Heavy |
| Corrosion Resistance | Excellent | Requires coating | Good |
| Electrical Insulation | Inherent insulation | Requires insulators | Requires insulators |
| Maintenance | Minimal | Regular painting required | Low |
| Installation | Easy (lightweight) | Requires heavy equipment | Complex construction |
| Service Life | 40+ years | 25-30 years | 30-40 years |
| Space Efficiency | Compact design | Standard design | Large footprint |
| Wind Deflection Risk | Eliminated | Present | Present |
Typical Projects
Explore our successful composite substation gantry projects that demonstrate the reliability and performance in critical applications.

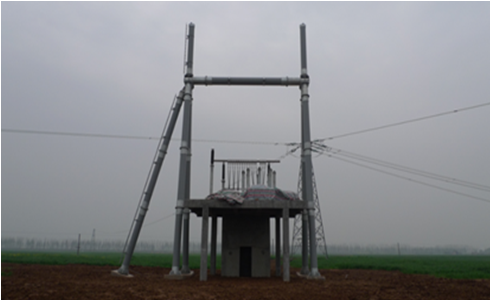

Jingmen Converter Station ±500kV Substation Gantry
The ±500 kV Substation Gantry of Jingmen Converter Station represents a landmark application of composite gantry technology. This project demonstrates the successful implementation of compact composite substation gantry in high-voltage DC applications, providing superior performance and reliability.
Project Highlights:
- ±500kV UHVDC converter station application
- Composite cross-arms with direct conductor connection
- Eliminated tension and suspension insulator strings
- Reduced gantry height and land occupation

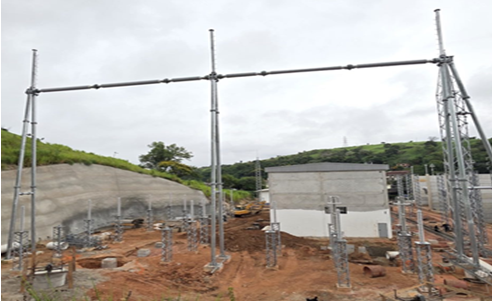

Brazil Lot 2 Project 345kV Substation Gantry
The 345 kV Substation Gantry for Brazil Lot 2 Project showcases Shemar's composite gantry technology in international markets. This project demonstrates the adaptability of our composite solutions to different voltage levels and regional requirements.
Project Highlights:
- 345kV AC substation application
- International project delivery
- Compact design for space optimization
- Enhanced safety and reliability
Download Resources
Access our comprehensive technical documentation including product specifications, test reports, and engineering drawings.
Product Brochure
Complete product catalog with specifications and dimensions
Technical Specifications
Detailed technical data, mechanical and electrical parameters
Test Reports
Type test and certification reports from accredited laboratories
Engineering Drawings
2D and 3D CAD drawings for installation reference
Aging Reports
Long-term aging performance data and field validation records
Installation Guide
Video tutorials and step-by-step installation manuals
Ready to Enhance Your Substation Architecture?
Our engineering team is ready to help you design and implement advanced composite architecture solutions for your substation project. Contact us today for a comprehensive assessment.
Get Composite Solution
