Global Application References
Over two decades of successful deployments across 100+ countries — from Arctic cold to desert heat, at altitudes exceeding 5,000m.
A 20-Year Quality Tracking Programme
Since 2001, SHEMAR has maintained a systematic quality-tracking plan covering routine aging inspections of in-service products, sampling under representative weather conditions, and collaborative testing with utilities, research institutes, and universities.
The accumulated data consistently demonstrates that SHEMAR composite insulators deliver a service life exceeding 40 years — verified by theory, laboratory testing, and real-world operational performance.
Typical UHV Substation Projects
World-first and record-setting converter stations where SHEMAR insulators continue to operate flawlessly after more than a decade in service.
±800kV · World First
Chuxiong ±800kV HVDC Converter Station
The world's first ±800kV UHVDC transmission project — a historic breakthrough marking China's transition from 0 to 1 in UHVDC technology. SHEMAR delivered 270 units in 2007. After 18 years of continuous operation under demanding conditions, every unit remains fully functional with zero quality abnormalities.
±1100kV · Highest Voltage
Changji ±1100kV UHVDC Converter Station
The world's first ±1100kV UHVDC project — highest voltage level, largest capacity, longest distance, and most advanced technology. SHEMAR delivered 1,267 units in 2016. After 9 years, zero quality abnormalities.
±800kV · Multi-terminal HVDC

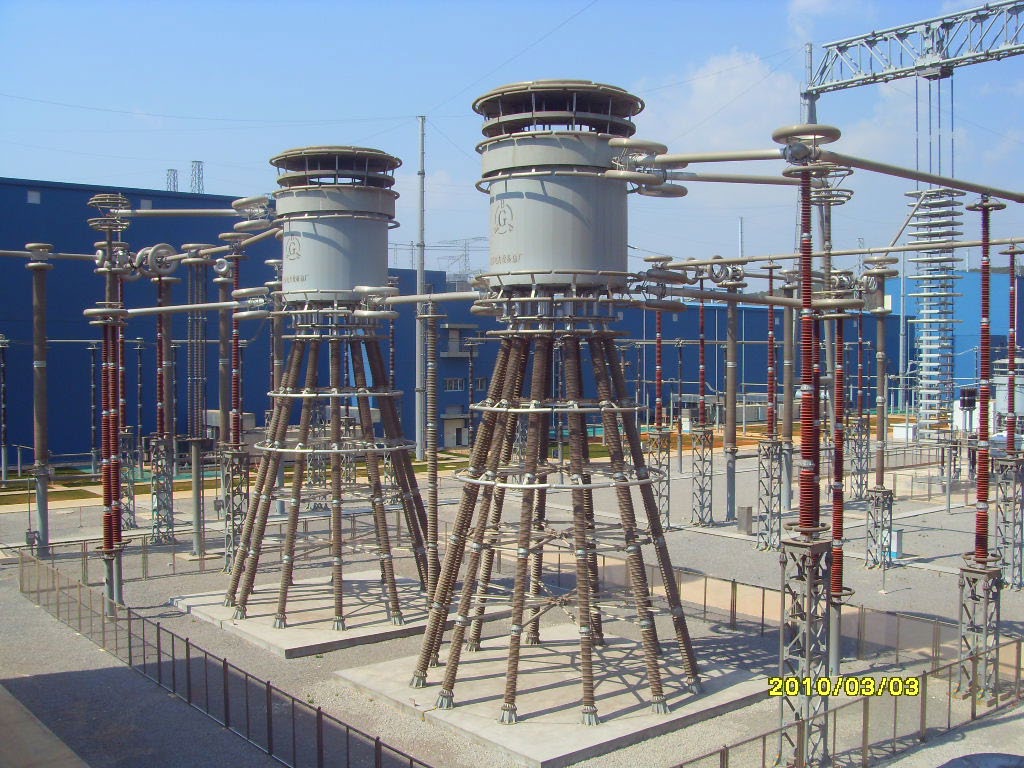

Liubei ±800kV HVDC Converter Station
Marks China's command of UHV multi-terminal flexible DC transmission technology. SHEMAR delivered 790 units in 2019. Six years of continuous reliable operation with zero anomalies recorded.
Typical UHV Transmission Line Projects
Long-distance backbone lines spanning thousands of kilometres, proving SHEMAR's reliability across extreme climates and environments.
DC ±800kV
Xiangjiaba–Shanghai DC±800kV UHVDC Project
1,107 SHEMAR units delivered in 2008. After 17 years of operation, all products continue to run reliably with zero quality abnormalities.
DC ±800kV · Chain First

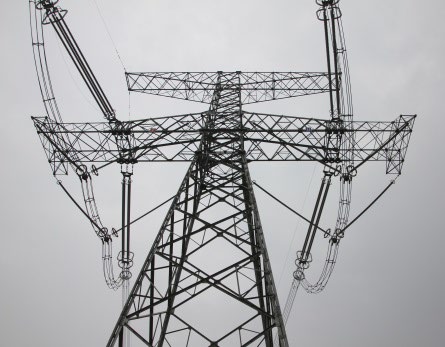

Jinping–Sunan DC±800kV UHVDC Project
SHEMAR was the first manufacturer of insulators used in extra-high tension composite insulator-on-chain configurations. 7,259 units delivered in 2011. 14 years of operation, zero quality abnormalities.
±400kV · 4,000m+ Altitude

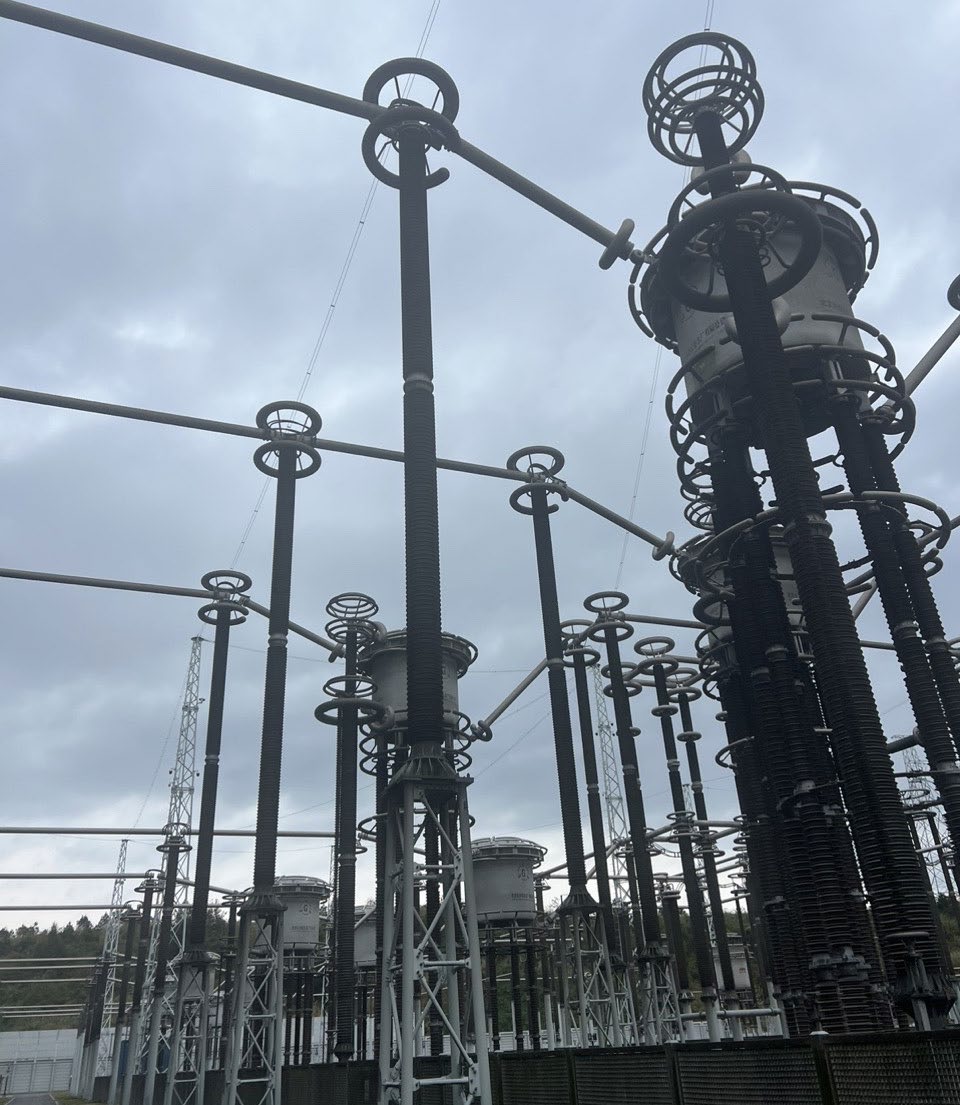

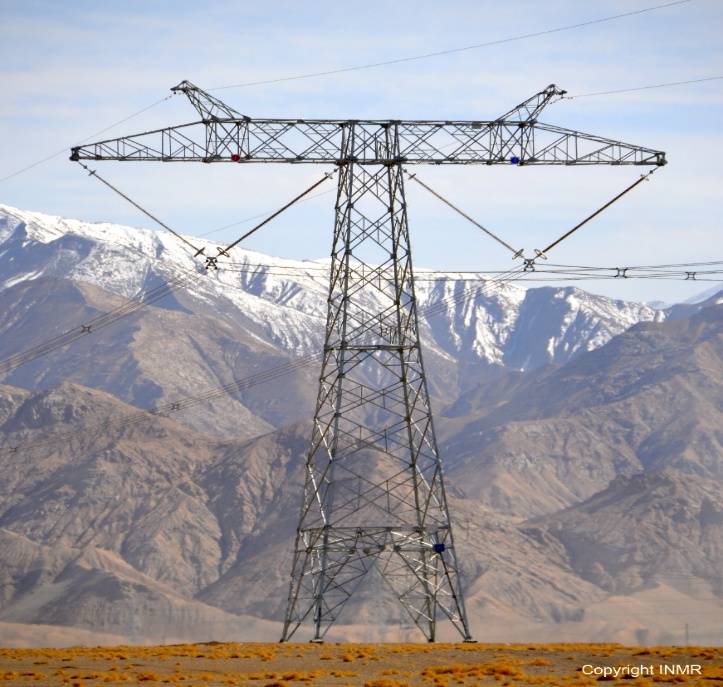

DC±400kV Qinghai–Tibet Project
Commissioned in 2011, this is the world's highest-altitude HVDC project — situated at an average elevation exceeding 4,000m with a peak site at 5,213m. UV radiation is 4–5× normal intensity, with temperatures down to −37.6°C (−35.7°F). SHEMAR deployed 6,790 units. As of 2025, 15 years of continuous stable operation with zero failures.
In-Service Performance Analysis
Systematic field-sampling and laboratory testing confirm that SHEMAR insulators maintain factory-equivalent performance across all key parameters after years of harsh field operation.
1000kV AC Jingmen Substation
UHV hollow composite insulators maintain good appearance and high water-repellency. Mechanical, electrical, sealing, and material properties all meet standards with no significant degradation. Results confirm long-term reliability in UHV applications.

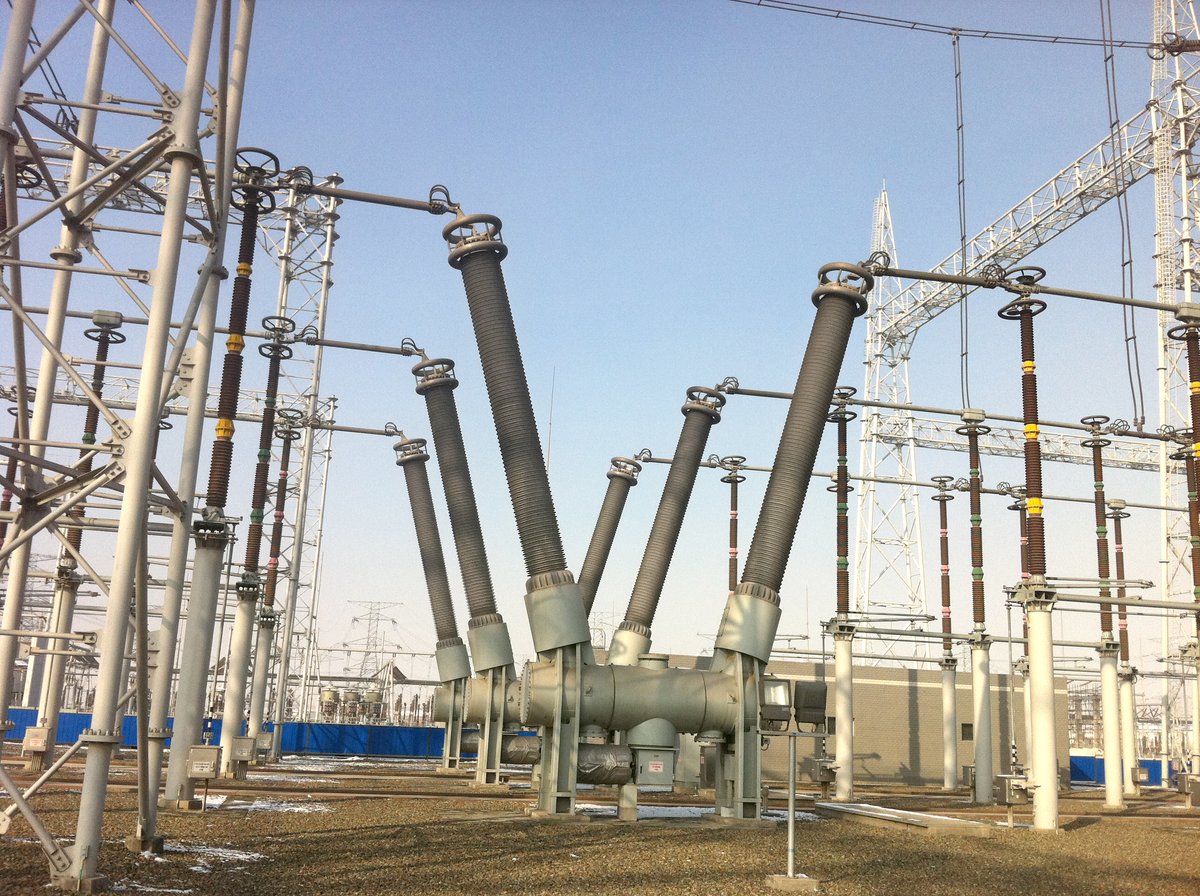

±800kV HVDC Jin-Su Project — Yulong Station
Overall mechanical and electrical performance equivalent to factory initial state. Silicone rubber material analysis confirms the product can meet a design service life of 30+ years.
500kV Yuntian Substation, Zhuzhou, Hunan
All indicators show no significant change after nearly 15 years of continuous operation. Analysis projects the insulator will meet requirements for 40+ years of total service.

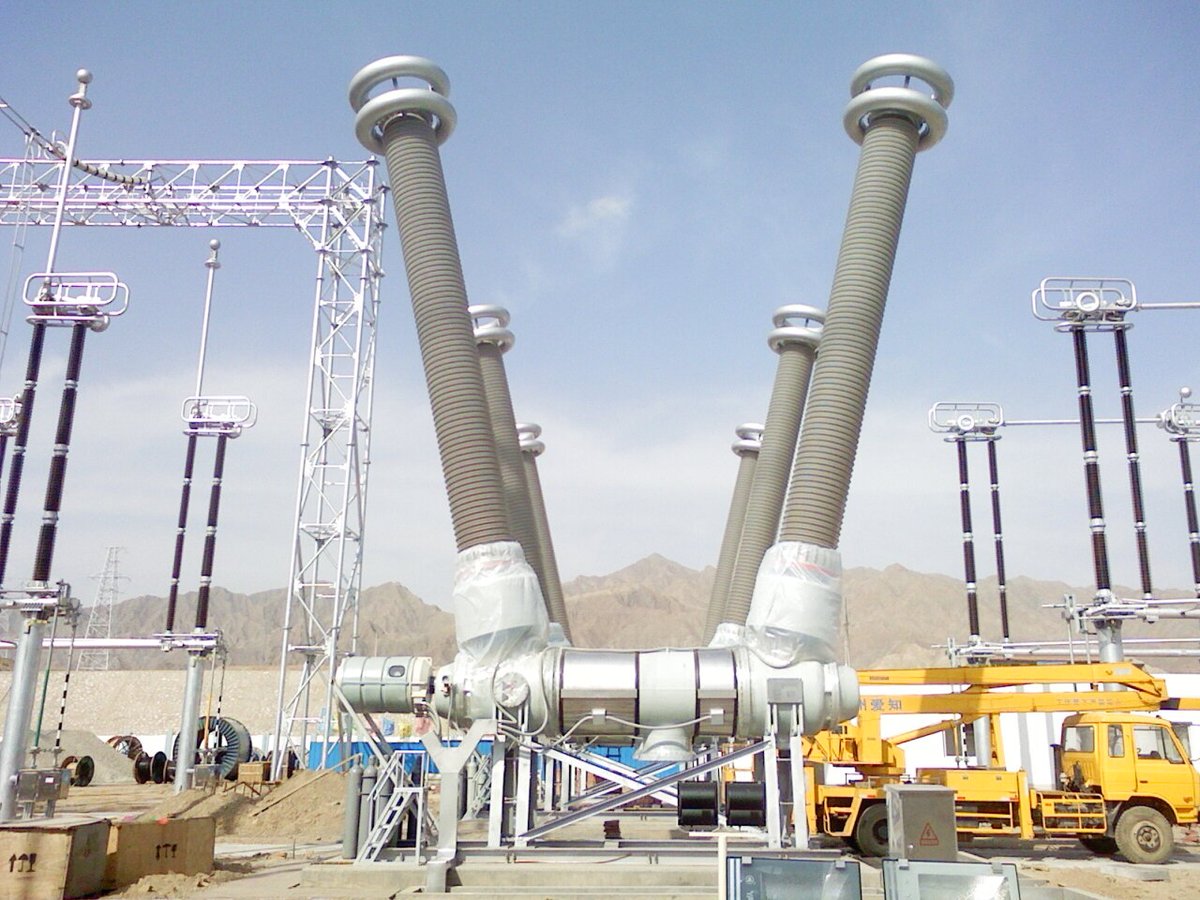

±800kV HVDC Yu-Guang Project — Suidong Station
The selected 500kV composite insulators show good operating characteristics after 10 years of field service, confirming capability for long-term continuous operation.
±400kV DC Qinghai–Tibet Project
Electrical, mechanical, and material properties almost identical to factory initial state after 6 years under extreme conditions: UV intensity 4–5× normal, temperatures to −37.6°C (−35.7°F), highest altitude 5,213m.

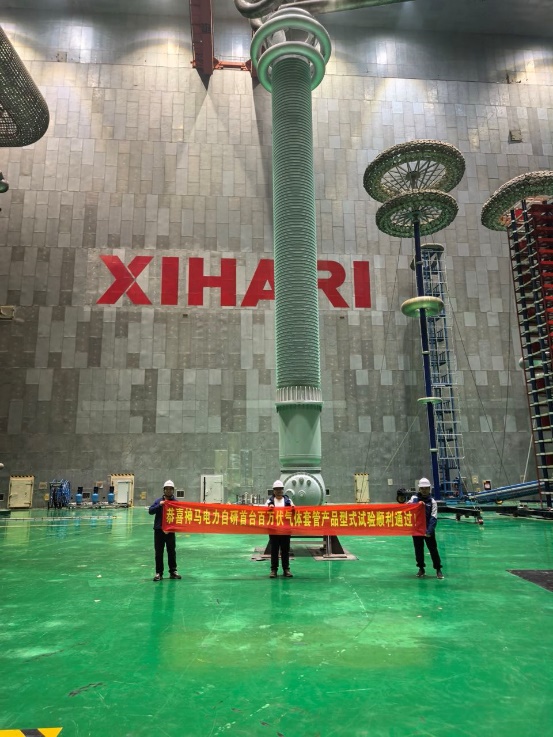

±800kV DC Jinping–Sunan Project
Electrical, mechanical, and material properties remain essentially identical to the initial factory state after 12 years of operation under severe environmental conditions — strong proof of 40-year design life.
Operational Product Data Summary
Historical service records from SHEMAR's long-term quality tracking programme, covering products from 2002 to present.
| Year Installed | Voltage | Device Type | Application Project | Operating Condition | Test Year | Service Life Tested | Total Operated |
|---|---|---|---|---|---|---|---|
| 2002 | 500kV | Hollow insulator | Luodi Mashan Substation | High temperature | 2007 | 5 yrs | 23 yrs |
| 2002 | 220kV | Hollow insulator | Laoshan Substation | Coastal | 2019 | 17 yrs | 23 yrs |
| 2005 | 550kV | Hollow insulator | Hunan Yuntian Substation | Inland humidity | 2019 | 14 yrs | 20 yrs |
| 2009 | 500kV | Hollow insulator | Lingbao Converter Station | High humidity | 2019 | 10 yrs | 16 yrs |
| 2009 | ±800kV | Column insulators | Suidong Substation | High temp & humidity | 2019 | 10 yrs | 16 yrs |
| 2009 | 1000kV | Hollow insulator | Hubei Jingmen Substation | High humidity & UV | 2011 | 3 yrs | 16 yrs |
| 2011 | ±400kV | Line insulators | Qinghai–Tibet Project | High altitude | 2017 | 6 yrs | 14 yrs |
| 2012 | ±800kV | Column insulators | Yulong Substation | High temp & humidity | 2018 | 6 yrs | 13 yrs |
| 2014 | ±800kV | Line insulators | Xixie Project | High humidity | 2019 | 5 yrs | 11 yrs |
| 2012 | ±800kV | Line insulators | Jinping–Sunan Project | High altitude + strong UV | 2024 | 12 yrs | 13 yrs |
